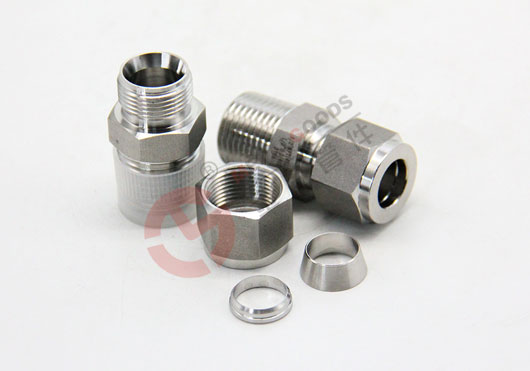

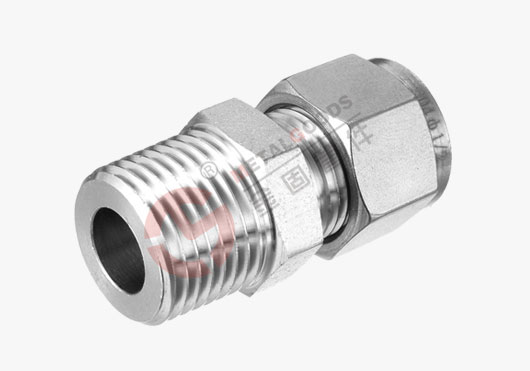

外牙直通卡套接头 | Male Connector
 |
Connects Fractional Tube To Female NPT Thread

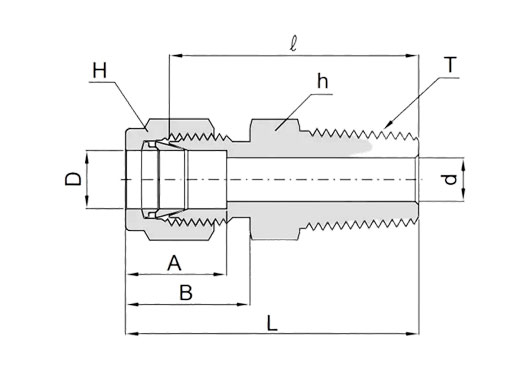

| Part No. | Tube OD D | T* NPT Size | d+ Min. | Width across flat (in.) | A | B | ℓ | L | ||
| in. | mm | h | H | |||||||
| CMC - 1N | 1/16 | 1.58 | 1/16 | 1.3 | 5/16 | 5/16 | 8.6 | 10.9 | 20 | 23.8 |
| CMC - 1-2N | 1/16 | 1.58 | 1/4 | 1.3 | 7/16 | 7/16 | 8.6 | 10.9 | 22.4 | 26.2 |
| CMC - 1-4N | 1/16 | 1.58 | 1/4 | 1.3 | 9/16 | 5/16 | 8.6 | 10.9 | 27.2 | 31 |
| CMC - 2N | 1/8 | 3.17 | 1/16 | 2.3 | 7/16 | 7/16 | 12.7 | 15.2 | 23.1 | 29.7 |
| CMC - 2-2N | 1/8 | 3.17 | 1/8 | 2.3 | 7/16 | 7/16 | 12.7 | 15.2 | 23.9 | 30.5 |
| CMC - 2-4N | 1/8 | 3.17 | 1/4 | 2.3 | 9/16 | 7/16 | 12.7 | 15.2 | 29 | 35.6 |
| CMC - 2-6N | 1/8 | 3.17 | 3/8 | 2.3 | 11/16 | 7/16 | 12.7 | 15.2 | 29.2 | 35.8 |
| CMC - 3-2N | 3/16 | 4.76 | 1/8 | 3 | 7/16 | 7/16 | 13.7 | 16 | 35.6 | 42.2 |
| CMC - 3-4N | 3/16 | 4.76 | 1/4 | 3 | 9/16 | 1/2 | 13.7 | 16 | 24.6 | 31.2 |
| CMC - 4-1N | 1/4 | 6.35 | 1/16 | 3 | 1/2 | 9/16 | 15.2 | 17.8 | 29.7 | 36.3 |
| CMC - 4N | 1/4 | 6.35 | 1/8 | 4.8 | 1/2 | 9/16 | 15.2 | 17.8 | 25.4 | 32.8 |
| CMC - 4-2N | 1/4 | 6.35 | 1/4 | 4.8 | 9/16 | 9/16 | 15.2 | 17.8 | 30.5 | 37.8 |
| CMC - 4-6N | 1/4 | 6.35 | 1/2 | 4.8 | 11/16 | 9/16 | 15.2 | 17.8 | 31 | 38.4 |
| CMC - 4-12N | 1/4 | 6.35 | 3/4 | 4.8 | 1-1/16 | 9/16 | 15.2 | 17.8 | 37.3 | 44.7 |
| CMC - 5-2N | 5/16 | 7.93 | 1/8 | 4.8 | 9/16 | 5/8 | 16.3 | 18.5 | 38.9 | 46.2 |
| CMC - 5-4N | 5/16 | 7.93 | 1/4 | 6.3 | 9/16 | 5/8 | 16.3 | 18.5 | 24.6 | 34 |
| CMC - 5-6N | 5/16 | 7.93 | 3/8 | 6.3 | 11/16 | 5/8 | 16.3 | 18.5 | 31.2 | 38.6 |
| CMC - 6-2N | 3/8 | 9.52 | 1/4 | 4.8 | 5/8 | 11/16 | 16.8 | 19.3 | 27.9 | 35.9 |
| CMC - 6-4N | 3/8 | 9.52 | 1/4 | 7 | 5/8 | 11/16 | 16.8 | 19.3 | 32.5 | 39.9 |
| CMC - 6-6N | 3/8 | 9.52 | 1/2 | 7 | 11/16 | 11/16 | 16.8 | 19.3 | 38.9 | 46.2 |
| CMC - 6-12N | 3/8 | 9.52 | 3/4 | 7 | 1-1/16 | 11/16 | 16.8 | 19.3 | 40.4 | 47.8 |
| CMC - 8-2N | 1/2 | 12.7 | 1/8 | 4.8 | 13/16 | 7/8 | 22.9 | 21.8 | 28.7 | 38.9 |
| CMC - 8-4N | 1/2 | 12.7 | 1/4 | 7 | 13/16 | 7/8 | 22.9 | 21.8 | 33.3 | 43.4 |
| CMC - 8-6N | 1/2 | 12.7 | 3/8 | 9.5 | 13/16 | 7/8 | 22.9 | 21.8 | 33.3 | 43.4 |
| CMC - 8-12N | 1/2 | 12.7 | 3/4 | 10.4 | 7/8 | 7/8 | 22.9 | 21.8 | 38.9 | 49 |
| CMC - 8-16N | 1/2 | 12.7 | 1 | 10.4 | 1-1/16 | 7/8 | 22.9 | 21.8 | 40.4 | 50.5 |
| CMC 10-6N | 5/8 | 15.87 | 3/8 | 9.5 | 15/16 | 1 | 24.4 | 21.8 | 37 | 44.2 |
| CMC 10-8N | 5/8 | 15.87 | 1/2 | 12.7 | 15/16 | 1 | 24.4 | 21.8 | 38.9 | 49 |
| CMC 10-12N | 5/8 | 15.87 | 3/4 | 12.7 | 1-1/16 | 1 | 24.4 | 21.8 | 40.4 | 50.5 |
| CMC 12-8N | 3/4 | 19.05 | 1/2 | 12 | 1-1/16 | 1-1/8 | 24.4 | 21.8 | 40.4 | 50.5 |
| CMC 12-12N | 3/4 | 19.05 | 3/4 | 15.7 | 1-1/16 | 1-1/8 | 24.4 | 21.8 | 40.4 | 50.5 |
| CMC 12-16N | 3/4 | 19.05 | 1 | 15.7 | 1-3/8 | 1-1/8 | 24.4 | 21.8 | 47 | 57.2 |
| CMC 14-16N | 7/8 | 22.22 | 1 | 18.3 | 1-3/8 | 1-1/4 | 25.9 | 21.8 | 47 | 57.2 |
| CMC 16-16N | 1 | 25.4 | 1/2 | 12 | 1-3/8 | 1-1/2 | 31.2 | 26.4 | 47 | 57.4 |
| CMC 16-12N | 1 | 25.4 | 3/4 | 15.7 | 1-3/8 | 1-1/2 | 31.2 | 26.4 | 47 | 57.4 |
| CMC 16-16N | 1 | 25.4 | 1 | 22.3 | 1-3/8 | 1-1/2 | 31.2 | 26.4 | 52 | 62.2 |
| CMC 20-16N | 1-1/4 | 31.75 | 1 | 22.3 | 1-3/4 | 1-7/8 | 41.1 | 38.9 | 55.1 | 77.2 |
| CMC 20-20N | 1-1/4 | 31.75 | 1-1/4 | 28 | 1-3/4 | 1-7/8 | 41.1 | 38.9 | 55.1 | 77.2 |
| CMC 24-24N | 1-1/2 | 38.1 | 1-1/2 | 34 | 2-1/8 | 2-1/4 | 50 | 45.2 | 61.7 | 88.9 |
| CMC 32-32N | 2 | 50.8 | 2 | 46 | 2-3/4 | 3 | 67.6 | 62.7 | 76.2 | 113.5 |
* ISO Tapered Threads are available upon request.
* The d dimension is the minimum nominal opening. These fittings may have a larger opening at the pipe/straight thread end.
