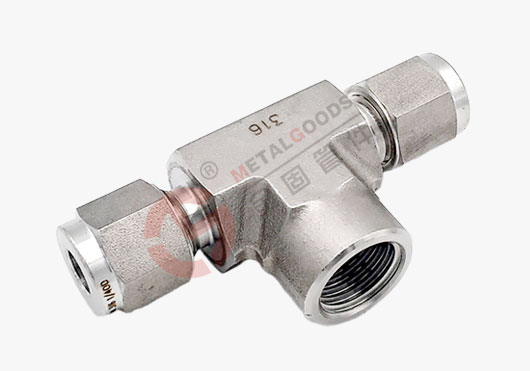

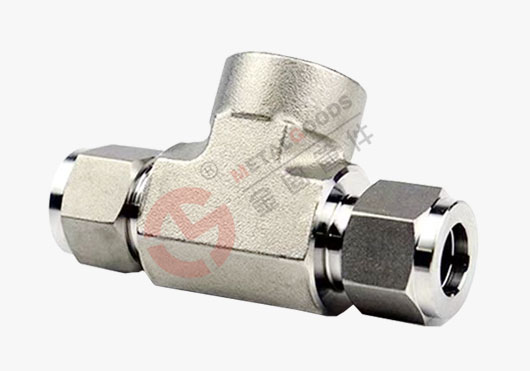

内牙支口卡套三通 | Female Branch Tee


Connects Fractional Tube to Male NPT Thread

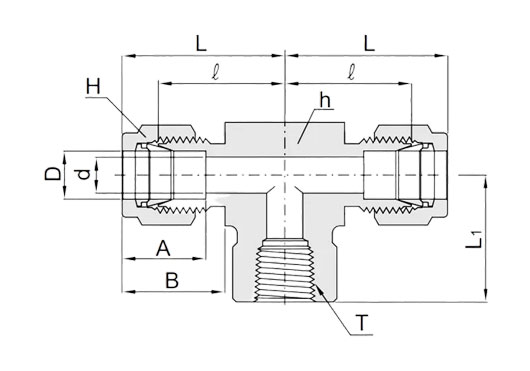

Part No.Tube OD D (in.)Tube OD D (mm)T* NPT Sized Min.Width across flat h (in.)Width across flat HABℓLL1
CBTF 2-2N1/83.171/82.39/167/1612.715.21824.619.1
CBTF 4-2N1/46.351/84.89/169/1615.217.819.626.919.1
CBTF 4-4N1/46.351/44.811/169/1615.217.822.429.722.4
CBTF 6-4N3/89.521/4711/1611/1616.819.323.931.222.4
CBTF 8-4N1/212.71/410.413/1611/1622.921.825.936.122.4
CBTF 8-8N1/212.71/210.413/167/822.921.828.738.928.4
CBTF10-8N5/815.871/212.717/824.421.828.738.928.4
CBTF12-12N3/419.053/415.71-3/81-1/824.421.834.544.731.8
CBTF16-12N125.43/422.31-3/81-1/231.226.436.84931.8
CBTF16-16N125.4122.31-11/161-1/231.226.441.453.638.1


Connects Metric Tube to Male NPT Thread

Part No.Tube OD DT* NPT Sized Min.Width across flat h (in.)Width across flat HABℓLL1
CBTF 6M-2N61/84.814mm1415.317.719.62719
CBTF 6M-4N61/44.811/161415.317.722.429.822.4
CBTF 6M-6N63/84.813/161415.317.724.431.722.4
CBTF 6M-8N61/24.811415.317.727.234.528.4
CBTF 8M-2N81/86.35/81616.218.623.129.919
CBTF 8M-4N81/46.311/161616.218.625.230.622.4
CBTF 8M-6N83/86.313/161616.218.625.232.422.4
CBTF 8M-8N81/26.311616.218.62835.228.4
CBTF10M-4N101/4811/161917.219.523.932.622.4
CBTF10M-6N103/8813/161917.219.525.933.322.4
CBTF10M-8N101/2811917.219.528.736.128.4
CBTF12M-4N121/49.513/162222.82225.93622.4
CBTF12M-6N123/89.513/162222.82225.93622.4
CBTF12M-8N121/29.512222.82228.738.828.4
CBTF16M-8N161/212.712524.42228.739.528.4
