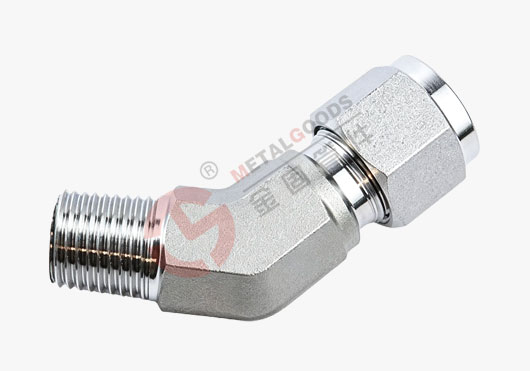

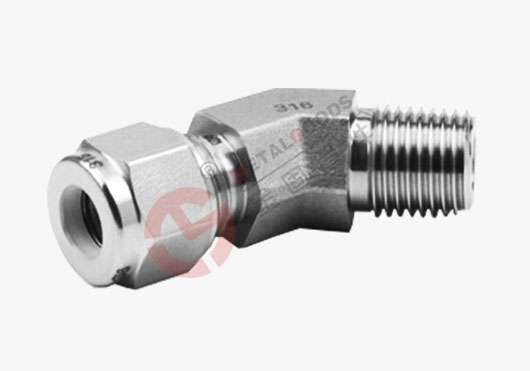

45°外牙卡套弯头 | 45° Male Elbow
 |
Connects Fractional Tube to Female NPT Thread

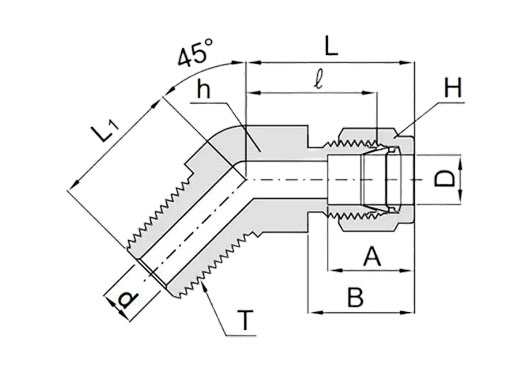

| Part No. | Tube OD | T* NPT Size | d+ Min. | Width across flat (in.) | A | B | ℓ | L | L₁ | ||
| in. | mm | h | H | ||||||||
| CLMB 4 - 2N | 1/4 | 6.35 | 1/8 | 4.8 | 1/2 | 9/16 | 15.2 | 17.8 | 17.3 | 24.6 | 16.5 |
| CLMB 4 - 4N | 1/4 | 6.35 | 1/4 | 4.8 | 1/2 | 9/16 | 15.2 | 17.8 | 17.3 | 24.6 | 21.1 |
| CLMB 6 - 2N | 3/8 | 9.52 | 1/8 | 4.8 | 5/8 | 11/16 | 16.8 | 19.3 | 20.6 | 27.9 | 18.3 |
| CLMB 6 - 4N | 3/8 | 9.52 | 1/4 | 7 | 5/8 | 11/16 | 16.8 | 19.3 | 20.6 | 27.9 | 22.9 |
| CLMB 6 - 6N | 3/8 | 9.52 | 3/8 | 7 | 13/16 | 11/16 | 16.8 | 19.3 | 21.8 | 29.2 | 24.1 |
| CLMB 8 - 6N | 1/2 | 12.7 | 3/8 | 9.5 | 13/16 | 7/8 | 22.9 | 21.8 | 21.8 | 32 | 24.1 |
| CLMB 8 - 8N | 1/2 | 12.7 | 1/2 | 10.4 | 13/16 | 7/8 | 22.9 | 21.8 | 21.8 | 32 | 29 |
| CLMB12 - 12N | 3/4 | 19.05 | 3/4 | 15.7 | 1-1/8 | 1-1/8 | 24.4 | 21.8 | 23.9 | 34 | 31 |
| CLMB 16 - 16N | 1 | 25.4 | 1 | 22.3 | 1-3/8 | 1-1/2 | 31.2 | 26.4 | 28.2 | 40.4 | 37.8 |
* ISO Tapered Threads are available upon request.
* The d dimension is the minimum nominal opening. These fittings may have a larger opening at the pipe/straight thread end.
