弯头管座 | Elbolet
| Size/尺寸 | 1/2" NPS TO 4" NPS |
| Class/压力等级 | 3000LB, 6000LB (SCH80/XS,SCH160) |
| Type/连接形式 | Buttweld/对焊、Socketweld/承插焊、Threaded/螺纹 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | MSS SP-97、GB/T19326-2022 |
| Stainless Steel/不锈钢 | ASTM A 182 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
 |  |

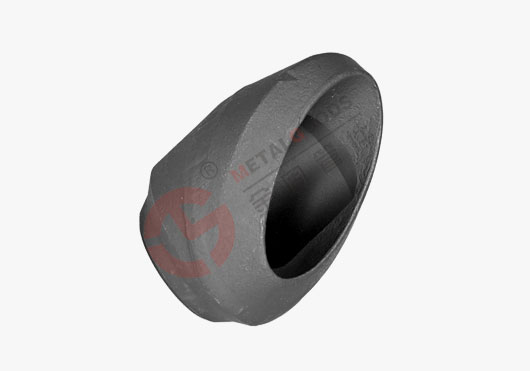

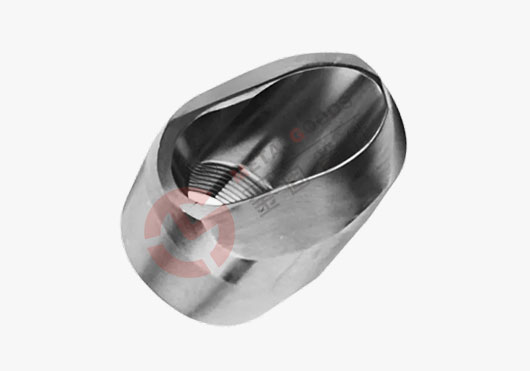

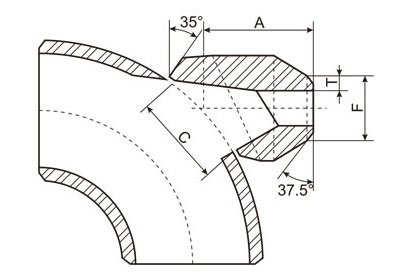

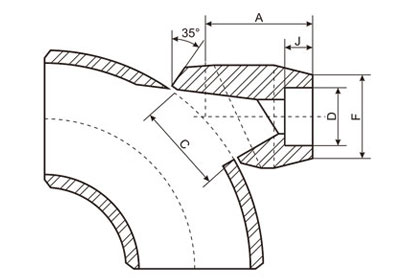

| 对焊弯头管座（Buttweld Elbolet） | 承插焊弯头管座（Socketweld Elbolet） |
| 3000LB ( SCH80 ) | |||||
|---|---|---|---|---|---|
| Outlet Pipe | A | C | F | T | |
| DN | Inch | ||||
| 8 | 1/4" | 40.5 | 35.2 | 13.7 | 3.0 |
| 10 | 3/8" | 40.5 | 35.2 | 17.1 | 3.2 |
| 15 | 1/2" | 40.5 | 35.2 | 21.3 | 3.7 |
| 20 | 3/4" | 47.6 | 43.6 | 26.7 | 3.9 |
| 25 | 1" | 55.6 | 54.0 | 33.4 | 4.5 |
| 32 | 1-1/4" | 60.3 | 67.5 | 42.2 | 4.9 |
| 40 | 1-1/2" | 66.7 | 76.2 | 48.3 | 5.1 |
| 50 | 2" | 81.0 | 104.8 | 60.3 | 5.5 |
| 65 | 2-1/2" | 82.6 | 106.4 | 73.0 | 7.0 |
| 80 | 3" | 96.8 | 125.4 | 88.9 | 7.6 |
| 100 | 4" | 114.3 | 163.5 | 114.3 | 8.6 |
| 6000LB ( SCH160 ) | |||||
|---|---|---|---|---|---|
| Outlet Pipe | A | C | F | T | |
| DN | Inch | ||||
| 8 | 1/4" | 40.5 | 34.9 | 13.7 | 3.7 |
| 10 | 3/8" | 40.5 | 34.9 | 17.1 | 4.0 |
| 15 | 1/2" | 47.6 | 34.9 | 21.3 | 4.7 |
| 20 | 3/4" | 55.6 | 43.6 | 26.7 | 5.5 |
| 25 | 1" | 60.3 | 54.0 | 33.4 | 6.4 |
| 32 | 1-1/4" | 66.7 | 67.5 | 42.2 | 6.4 |
| 40 | 1-1/2" | 85.7 | 76.2 | 48.3 | 7.1 |
(1) Dimensions in Millimeters.
(2) Dimensions refer to ANSI B16.11
(3) Dimensions may vary according to the customer's and manufacturer's requirement.
Dimensional tolerance of MSS-SP97
