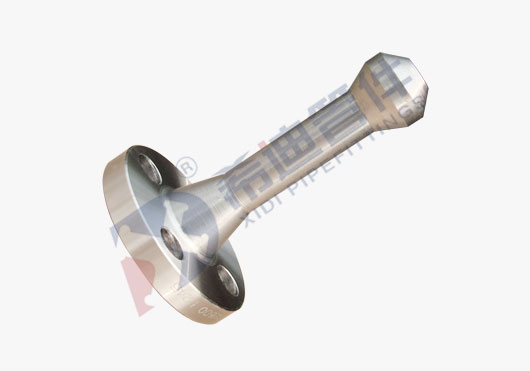

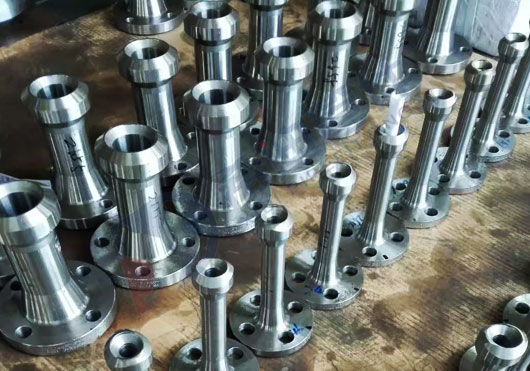

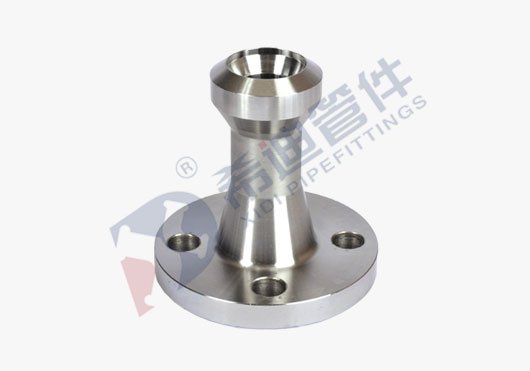

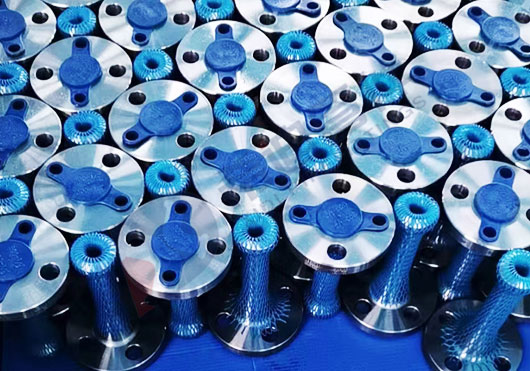

法兰管座 | Flanged Olets


Size/尺寸1/2" NPS TO 6" NPS
Class/压力等级3000LB, 6000LB, 9000LB (SCH80/XS, SCH160, XXS)
Type/连接形式法兰短管连接/Flanged Nipple
Surface Treatment/表面处理Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
Materal/材质Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process/制造工艺Cutting, Heat treatment, Forging, Machining
锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准ASME B31.1 & ASME  B16.5, Also in ASME  B31.3, ASME B31.8, and ASME  BPVC Sec I & Sec VIII Div 2 ,Threaded ends per ASME B1.20.1 • Beveled ends per ASME B16.25


Stainless Steel/不锈钢          ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
Duplex & Super Duplex Steel/双相钢 ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢 ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金 ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

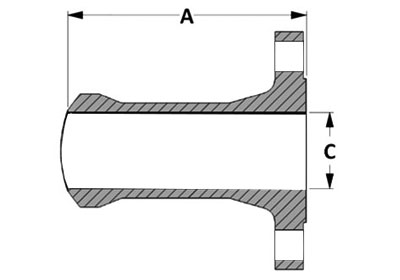

PIPE
SIZE		150#300#600#1500#2500#
ACACACACAC
 1/25.906---5.906---5.906---5.906---5.906---
 3/45.906---5.906---5.906---5.906---5.906---
15.906---5.906---5.906---5.906---5.906---
1-1/45.906---5.906---5.906---5.906---5.906---
1-1/25.906---5.906---5.906---5.906---5.906---
25.906---5.906---5.906---5.906---6.496---

Note:All dimensions are in inches • Weights are based on Carbon Steel
