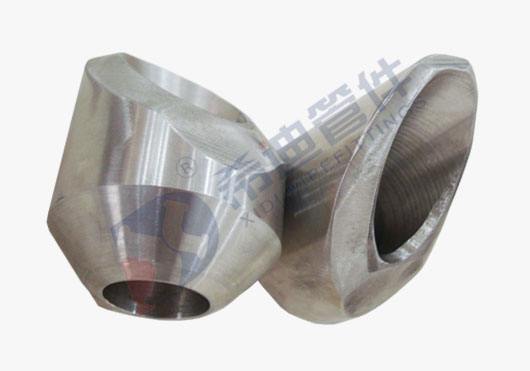

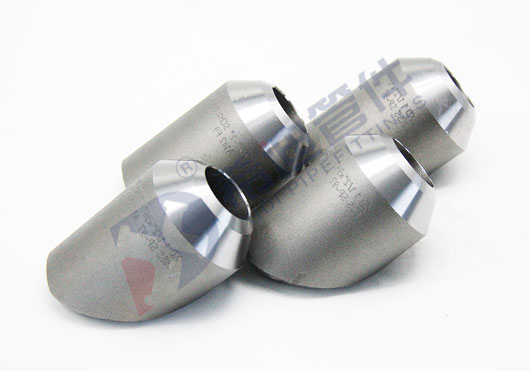

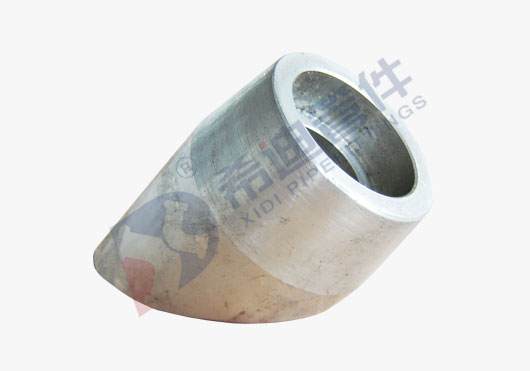

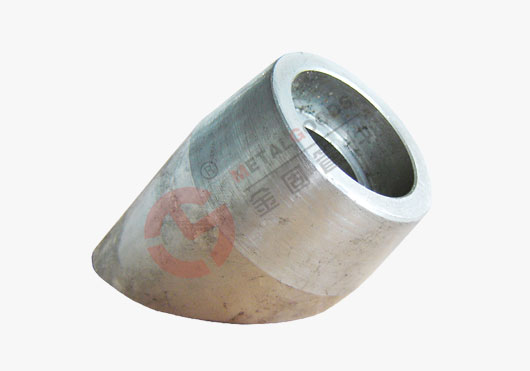

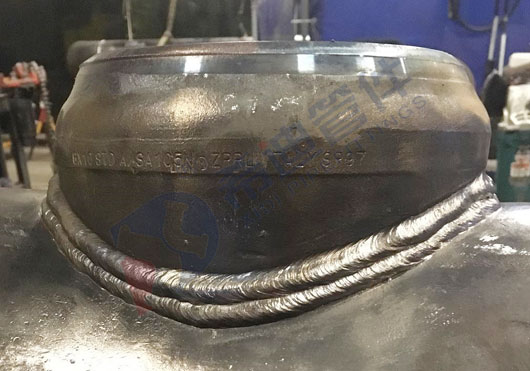

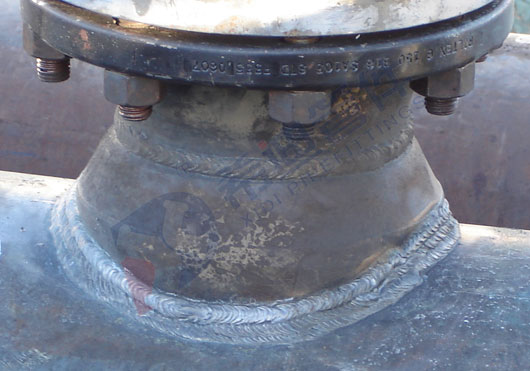

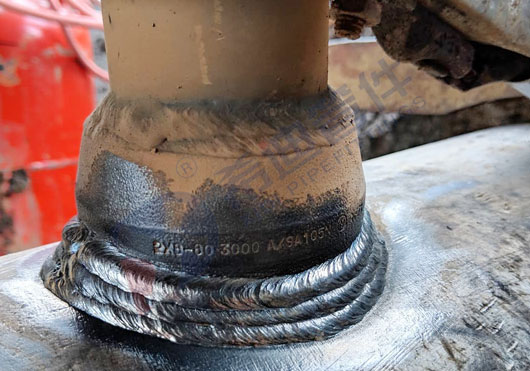

| 对焊斜接管座（Buttweld Latrolet） | 承插焊斜接管座（Sockweld Latrolet） |
 |  |

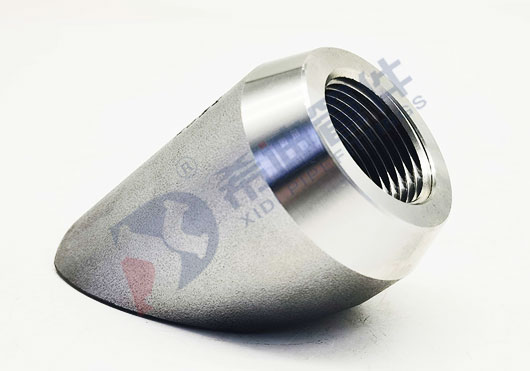

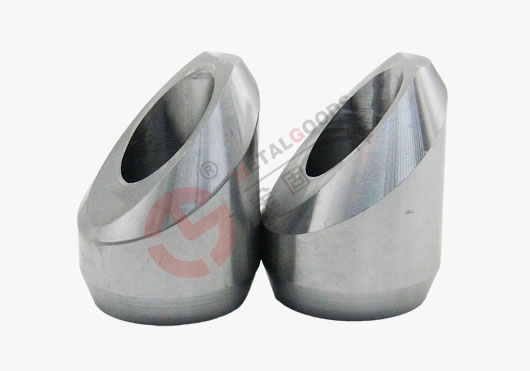

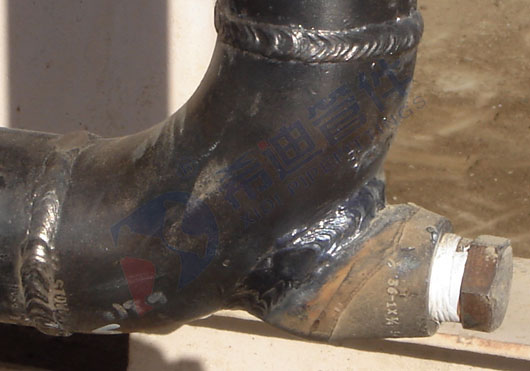

| 螺纹斜接管座(Threaded Latrolet) | 对焊斜接支管台（ASTM A182 F9） |
| Size/尺寸 | 1/2" NPS TO 4" NPS |
| Class/压力等级 | 3000LB, 6000LB (STD, SCH80/XS, SCH160) |
| Type/连接形式 | Buttweld/对焊、Socketweld/承插焊、Threaded/螺纹 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
不锈钢，合金钢，双相钢，镍合金，低温钢，碳素钢，铜镍合金 |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining
锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | MSS SP-97 |
| Stainless Steel/不锈钢 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| |
|
 |  |

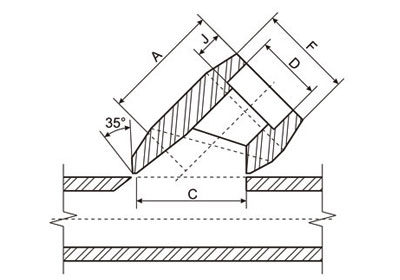

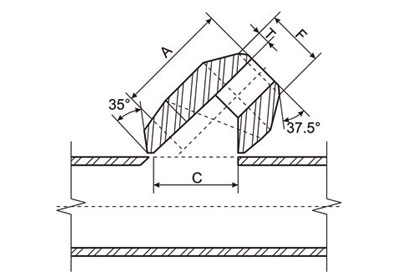

| 承插焊斜接支管座结构图 | 对焊斜接支管座结构图 |
3000LB
| Outlet Pipe | A | C | F | D | J |
| DN | Inch |
| 8 | 1/4" | 40.5 | 35.2 | 22 | 14.35 | 10 |
| 10 | 3/8" | 40.5 | 35.2 | 25.9 | 17.8 | 10 |
| 15 | 1/2" | 40.5 | 35.2 | 31.4 | 21.95 | 11.1 |
| 20 | 3/4" | 47.6 | 43.6 | 37.1 | 27.3 | 12.7 |
| 25 | 1" | 55.6 | 54 | 45.5 | 34.05 | 13.5 |
| 32 | 1-1/4" | 60.3 | 67.5 | 57 | 42.8 | 15.1 |
| 40 | 1-1/2" | 66.7 | 76.2 | 64 | 48.9 | 15.9 |
| 50 | 2" | 81 | 104.8 | 76 | 61.35 | 17.5 |
| 65 | 2-1/2" | 82.6 | 106.4 | 92 | 74.15 | 23.8 |
| 80 | 3" | 96.8 | 125.4 | 109.2 | 90.1 | 28.6 |
| 100 | 4" | 114.3 | 163.5 | 140 | 115.75 | 29.4 |
6000LB
| Outlet Pipe | A | C | F | D | J |
| DN | Inch |
| 8 | 1/4" | 40.5 | 34.9 | 26 | 14.35 | 10 |
| 10 | 3/8" | 40.5 | 34.9 | 33 | 17.8 | 10 |
| 15 | 1/2" | 47.6 | 34.9 | 38 | 21.95 | 10 |
| 20 | 3/4" | 55.6 | 43.6 | 44 | 27.3 | 14.3 |
| 25 | 1" | 60.3 | 54 | 57 | 34.05 | 15.9 |
| 32 | 1-1/4" | 66.7 | 67.5 | 64 | 42.8 | 20.6 |
| 40 | 1-1/2" | 85.7 | 76.2 | 76 | 48.9 | 20.6 |
(1) Dimensions in Millimeters.
(2) Dimensions refer to ANSI B16.11
(3) Dimensions may vary according to the customer's and manufacturer's requirement.
