螺纹管座 | Thredolet
| Size/尺寸 | 1/2" NPS TO 4" NPS |
| Class/压力等级 | 3000LB, 6000LB (SCH80/XS, SCH160) |
| Type/连接形式 | Threads: American National Standard Taper Pipe Threads NPT(ANSI/ASME B1.20.1-1983) Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination. |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 |
| ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L | |
 |  |
 |  |
 |

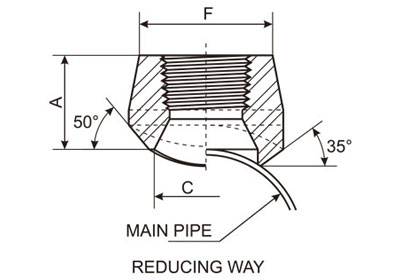

| Out-Let Pipe NPS (in) | Reducing Way | |||||
| A | C | F | ||||
| 3000lb (Sch80) | 6000lb (Sch160) | 3000lb (Sch80) | 6000lb (Sch160) | 3000lb (Sch80) | 6000lb (Sch160) | |
| 1/8" | 19.0 | --- | 13.7 | --- | 17.3 | --- |
| 1/4" | 19.0 | --- | 13.7 | --- | 22.0 | --- |
| 3/8" | 21.0 | --- | 17.1 | --- | 25.8 | --- |
| 1/2" | 25.0 | 32.0 | 21.3 | 16.6 | 31.3 | 33.9 |
| 3/4" | 27.0 | 37.0 | 26.7 | 21.2 | 37.1 | 41.2 |
| 1" | 33.0 | 40.0 | 33.4 | 27.0 | 45.5 | 49.9 |
| 1-1/4" | 33.0 | 41.0 | 42.2 | 35.8 | 57.0 | 58.6 |
| 1-1/2" | 35.0 | 43.0 | 48.3 | 41.2 | 64.0 | 66.7 |
| 2" | 38.0 | 52.0 | 60.3 | 51.6 | 76.0 | 83.2 |
| 2-1/2" | 46.0 | --- | 73.0 | --- | 92.0 | --- |
| 3" | 51.0 | --- | 88.9 | --- | 109.2 | --- |
| 4" | 57.0 | --- | 114.3 | --- | 140.0 | --- |
 |

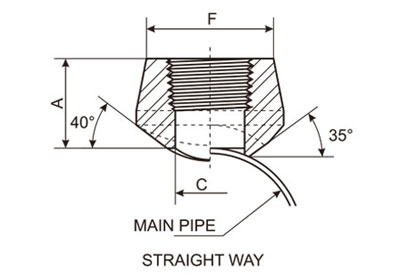

| Out-Let Pipe NPS (in) | Straight Way | ||
| A | C | F | |
| 3000lb | |||
| 1/8" | --- | --- | --- |
| 1/4" | 19.0 | 11.5 | 22.0 |
| 3/8" | 21.0 | 14.5 | 25.9 |
| 1/2" | 25.0 | 16.5 | 31.4 |
| 3/4" | 27.0 | 21.5 | 37.1 |
| 1" | 33.0 | 27.2 | 45.5 |
| 1-1/4" | 33.0 | 36.0 | 57.0 |
| 1-1/2" | 35.0 | 42.0 | 64.0 |
| 2" | 38.0 | 53.0 | 76.0 |
| 2-1/2" | 46.0 | 65.0 | 92.0 |
| 3" | 51.0 | 80.0 | 109.2 |
| 4" | 57.0 | 104.0 | 140.0 |
(1) Dimensions in Millimeters.
(2) Thread in accordance with ASME B1.20.1
(3) 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
Dimensional Tolerance of MSS-SP97
| Item | 1/8"to3/4" | 1"to4" | |||
| Face of fitting to crotch(A) | ±0.76 | ±1.52 |
