| Size/尺寸 | 1/2" NPS TO 24" NPS |
| Class/压力等级 | 3000LB, 6000LB, 9000LB (STD, SCH80/XS, SCH160, XXH) |
| Type/连接形式 | Buttweld/对焊 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken,
热浸镀锌，环氧树脂和FBE涂层，电抛光，喷砂，发黑 |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
不锈钢，合金钢，双相钢，镍合金，低温钢，碳素钢，铜镍合金 |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining
锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | MSS SP-97 |
| Stainless Steel/不锈钢 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
 |

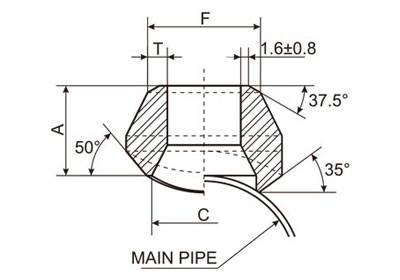

| Out-Let Pipe NPS | Reducing Way |
| A | C | F | T |
Standard
Weight | Extra Strong |
| 1/8" | 16 | 13.7 | 10.3 | 1.73 | 2.41 |
| 1/4" | 16 | 13.7 | 13.7 | 2.24 | 3.02 |
| 3/8" | 19 | 17.1 | 17.1 | 2.31 | 3.2 |
| 1/2" | 19 | 21.3 | 21.3 | 2.77 | 3.73 |
| 3/4" | 22 | 26.7 | 26.7 | 2.87 | 3.91 |
| 1" | 27 | 33.4 | 33.4 | 3.38 | 4.55 |
| 1-1/4" | 32 | 42.2 | 42.2 | 3.56 | 4.85 |
| 1-1/2" | 33 | 48.3 | 48.3 | 3.68 | 5.08 |
| 2" | 38 | 60.3 | 60.3 | 3.91 | 5.54 |
| 2-1/2" | 41 | 73 | 73 | 5.16 | 7.01 |
| 3" | 44 | 88.9 | 88.9 | 5.49 | 7.62 |
| 3-1/2" | 48 | 101.6 | 101.6 | 5.74 | 8.56 |
| 4" | 51 | 114.3 | 114.3 | 6.02 | 8.56 |
| 5" | 57 | 141.3 | 141.3 | 6.55 | 9.53 |
| 6" | 78 | 168.3 | 168.3 | 7.11 | 10.97 |
| 8" | 99 | 219.3 | 219.3 | 8.11 | 12.7 |
| 10" | 94 | 273.1 | 273.1 | 9.27 | 12.7 |
| 12" | 103 | 323.9 | 323.9 | 9.53 | 12.7 |
| 14" | 100 | 355.6 | 355.6 | 9.53 | 12.7 |
| 16" | 106 | 406.4 | 406.4 | 9.53 | 12.7 |
| 18" | 111 | 457.2 | 457.2 | 9.53 | 12.7 |
| 20" | 119 | 508 | 508 | 9.53 | 12.7 |
| 24" | 140 | 609.6 | 609.6 | 9.53 | 12.7 |

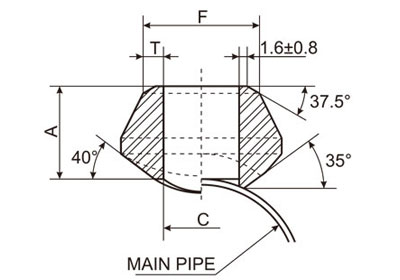

| Out-Let Pipe NPS | Reducing Way |
| A | C | F | T |
Standard
Weight | Extra Strong |
| 1/8" | --- | --- | --- | --- | --- |
| 1/4" | 16 | 11.5 | 13.7 | 2.24 | 3.02 |
| 3/8" | 19 | 14.5 | 17.1 | 2.31 | 3.2 |
| 1/2" | 19 | 16.5 | 21.3 | 2.77 | 3.73 |
| 3/4" | 22 | 21.5 | 26.7 | 2.87 | 3.91 |
| 1" | 27 | 27.2 | 33.4 | 3.38 | 4.55 |
| 1-1/4" | 32 | 36 | 42.2 | 3.56 | 4.85 |
| 1-1/2" | 33 | 42 | 48.3 | 3.68 | 5.08 |
| 2" | 38 | 53 | 60.3 | 3.91 | 5.54 |
| 2-1/2" | 41 | 65 | 73 | 5.16 | 7.01 |
| 3" | 44 | 80 | 88.9 | 5.49 | 7.62 |
| 3-1/2" | --- | --- | --- | --- | --- |
| 4" | 51 | 104 | 114.3 | 6.02 | 8.56 |
(1) Dimensions in Millimeters.
(2) Weld Bevel in accordance with ASME B16.25
(3) Outside size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
(4) Outside size 5 and up order to specific size combination.
Dimensional tolerance of MSS-SP97
| Item | 1/8"to3/4" | 1"to4" | 5"to12" | 14"to24 |
| Face of fitting to crotch(A) | ±0.76 | ±1.52 | ±3.05 | ±4.83 |
