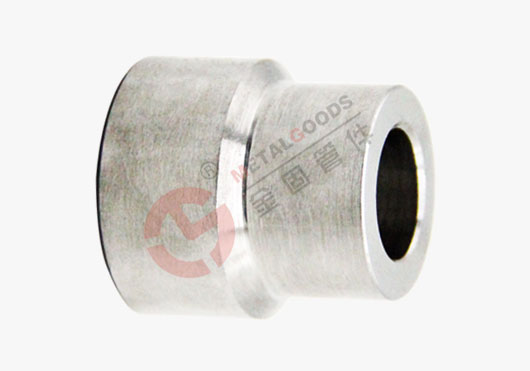

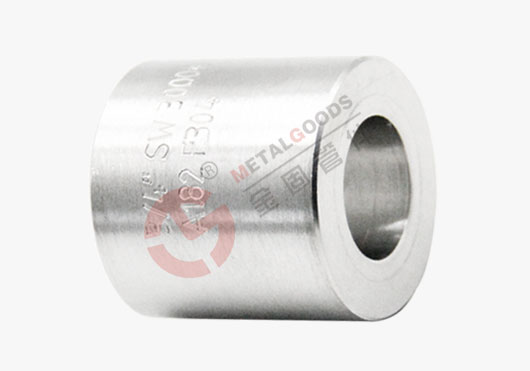

异径插入件 | Socketweld Reducing Inserts

Size/尺寸	1/8"~4"; (DN6~DN100)
Class/压力等级	3000 LBS, 6000 LBS, 9000 LBS
Type/连接形式	Sockeweld,承插焊
Surface Treatment/表面处理	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
Materal/材质	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process/制造工艺	Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准	MSS SP-79

Stainless Steel/不锈钢	ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
Duplex & Super Duplex Steel/双相钢	ASTM A 182 F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢	ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢	ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金	Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金	ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Socket Weld Pressure Class	Pipe Schedule
Class 3000	S80/XH
Class 6000	S160
Class 9000	XXH

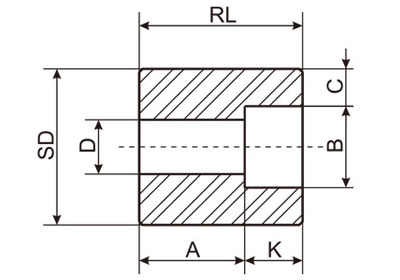

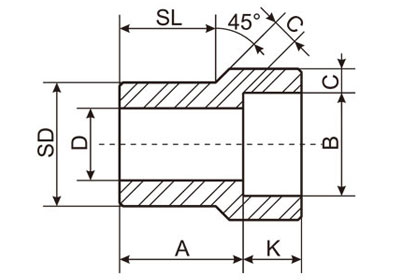

异径插入件（Type 1）结构图	异径插入件（Type 2）结构图

Nom. Pipe Size	Type		Socket		Shank Dia. SD	Laying Length A		Bore D		Wall Min. C		Length
	Type		Dia. B	Depth Min. K		Laying Length A		Bore D		Wall Min. C		SL		RL(Min.)
	3000	6000	Dia. B	Depth Min. K		3000	6000	3000	6000	3000	6000	3000	6000	3000	6000
3/8"-1/4"	1	1	14.35	10	17.15	19	21	9.0	6.5	3.78	4.60	14	16	---	---
1/2"-3/8"	1	1	17.78	10	21.34	21	23	12.5	9.0	4.01	5.03	16	16	---	---
1/2"-1/4"	1	1	14.35	10	21.34	21	21	9.0	6.5	3.78	4.60	16	16	---	---
3/4"-1/2"	1	1	21.97	10	26.67	22	25	16.0	11.5	4.67	5.97	17	19	---	---
3/4"-3/8"	2	1	17.78	10	26.67	16	22	12.5	9.0	4.01	5.03	---	19	27	---
3/4"-1/4"	2	2	14.35	10	26.67	18	22	9.0	6.5	3.78	4.60	---	---	27	32
1"-3/4"	1	1	27.31	13	33.40	24	28	21.0	15.5	4.90	6.96	19	21	---	---
1"-1/2"	2	1	21.97	10	33.40	16	28	16.0	11.5	4.67	5.97	---	21	28	---
1"-3/8"	2	2	17.78	10	33.40	18	22	12.5	9.0	4.01	5.03	---	---	28	33
1"-1/4"	2	2	14.35	10	33.40	19	24	9.0	6.5	3.78	4.60	---	---	28	33
1.1/4"-1"	1	1	34.04	13	42.16	25	30	26.5	20.5	5.69	7.92	21	22	---	---
1.1/4"-3/4"	2	2	27.31	13	42.16	18	21	21.0	15.5	4.90	6.96	---	---	32	35
1.1/4"-1/2"	2	2	21.97	10	42.16	19	22	16.0	11.5	4.67	5.97	---	---	32	35
1.1/4"-3/8"	2	2	17.78	10	42.16	21	24	12.5	9.0	4.01	5.03	---	---	32	35
1.1/4"-1/4"	2	2	14.35	10	42.16	22	25	9.0	6.5	3.78	4.60	---	---	32	35
1.1/2"-1-1/4"	1	1	42.80	13	48.26	28	35	35.0	29.5	6.07	7.92	22	25	---	---
1.1/2"-1"	2	1	34.04	13	48.26	18	29	26.5	20.5	5.69	7.92		25	33
1.1/2"-3/4"	2	2	27.31	13	48.26	19	25	21.0	15.5	4.90	6.96	---	---	33	40
1.1/2"-1/2"	2	2	21.97	10	48.26	21	27	16.0	11.5	4.67	5.97	---	---	33	40
1.1/2"-3/8"	2	2	17.78	10	48.26	22	28	12.5	9.0	4.01	5.03	---	---	33	40
2"-1.1/2"	1	1	48.90	13	60.32	32	39	41.0	34.0	6.35	8.90	25	28	---	---
2"-1.1/4"	2	2	42.80	13	60.32	21	24	35.0	29.5	6.07	7.92	---	---	38	41
2"-1"	2	2	34.04	13	60.32	22	25	26.5	21.0	5.69	7.92	---	---	38	41
2"-3/4"	2	2	27.31	13	60.32	24	27	21.0	15.5	4.90	6.96	---	---	38	41
2"-1/2"	2	2	21.97	10	60.32	25	28	16.0	11.5	4.67	5.97	---	---	38	41
2.1/2"-2"	1	1	61.37	16	73.02	46	43	52.5	43.0	6.93	10.92	32	38	---	---
2.1/2"-1.1/2"	2	2	48.90	13	73.02	35	35	41.0	34.0	6.35	---	---	---	54	54
2.1/2"-1.1/4"	2	2	42.80	13	73.02	37	37	35.0	29.5	6.07	---	---	---	54	54
2.1/2"-1"	2	2	34.04	13	73.02	38	38	26.5	21.0	5.69	---	---	---	54	54
2.1/2"-3/4"	2	2	27.31	13	73.02	40	38	21.0	15.5	4.90	---	---	---	54	54
3"-2.1/2"	1	1	74.07	16	88.90	38	57	62.5	54.0	8.76	---	32	45	---	---
3"-2"	2	2	61.37	16	88.90	25	32	52.5	43.0	6.93	---	---	---	48	54
3"-1.1/2"	2	2	48.90	13	88.90	29	32	41.0	34.0	6.35	---	---	---	48	54
3"-1.1/4"	2	2	42.80	13	88.90	30	32	35.0	29.5	6.07	---	---	---	48	54
3"-1"	2	2	34.04	13	88.90	32	32	26.5	21.0	5.69	---	---	---	48	54
4"-3"	2	---	90.04	16	114.30	33	---	78.0	---	9.50	---	---	---	60	---
4"-2.1/2"	2	---	74.07	16	114.30	38	---	62.5	---	8.76	---	---	---	60	---
4"-2"	2	---	61.37	16	114.30	38	---	52.5	---	6.93	---	---	---	60	---
4"-1.1/2"	2	---	48.90	13	114.30	42	---	41.0	---	6.35	---	---	---	60	---
4"-1.1/4"	2	---	42.80	13	114.30	43	---	35.0	---	6.07	---	---	---	60	---

(1) Dimensions in Millimeters.
(2) At the option of the manufacturer type 2 reducer may be furnished in type 1 configuration.
