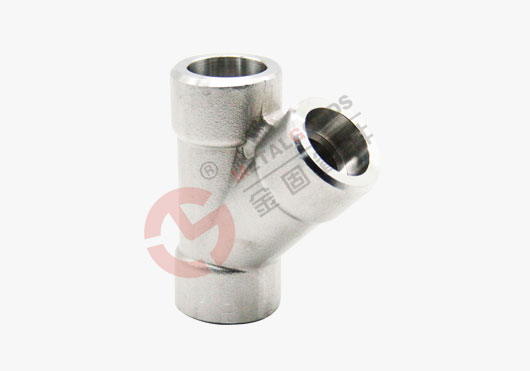

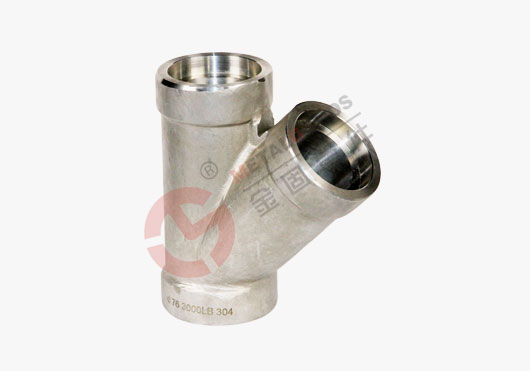

承插焊斜三通 | Socketweld Lateral Tee
Socketweld Lateral Specifications:
| Size/尺寸 | 1/8"~2.1/2"; (DN6~DN65) |
| Class/压力等级 | 3000 LBS, 6000 LBS |
| Type/连接形式 | Sockeweld,承插焊 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering 热浸镀锌、环氧树脂和FBE图层、电抛光、喷砂、发黑等。 |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | ASME 16.11, GB/T14383-2018，BS-3799 |
Socketweld Lateral Material Grades:
| Stainless Steel/不锈钢 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |

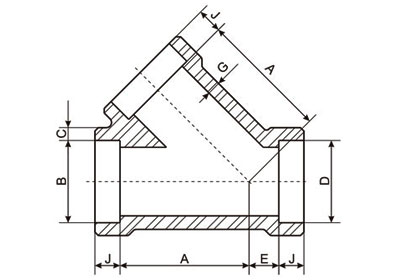

Socketweld Lateral Dimesions:
 |
| Socket Weld Pressure Class | Pipe Schedule |
| Class 3000 | S80/XH |
| Class 6000 | S160 |
| Class 9000 | XXH |
3000LB
6000LB
(1)Dimensions in Millimeters.
(2)Dimensions refer to ANSI B16.11
(3)Dimensions may vary according to the customer's and manufacturer's requirement.
| DN | Nom.Pipe Size | B | B | D | A | E | G (Min.) | J (Min.) | |
| (Avg.) | (Min.) | ||||||||
| 15 | 1/2" | 21.8 | 4.67 | 4.09 | 15.8 | 35 | 9 | 3.75 | 9.5 |
| 20 | 3/4" | 27.2 | 4.90 | 4.27 | 21.0 | 41 | 9 | 3.95 | 12.5 |
| 25 | 1" | 33.9 | 5.69 | 4.98 | 26.7 | 51 | 12 | 4.55 | 12.5 |
| 32 | 1-1/4" | 42.7 | 6.07 | 5.28 | 35.1 | 59 | 17 | 4.85 | 12.5 |
| 40 | 1-1/2" | 48.8 | 6.35 | 5.54 | 40.9 | 68 | 21 | 5.10 | 12.5 |
| 50 | 2" | 61.2 | 6.93 | 6.04 | 52.5 | 95 | 24 | 5.55 | 16.0 |
| 65 | 2-1/2" | 73.9 | 8.76 | 7.67 | 62.7 | 118 | 38 | 7.05 | 16.0 |
6000LB
| DN | Nom.Pipe Size | B | B | D | A | E | G (Min.) | J (Min.) | |
| (Avg.) | (Min.) | ||||||||
| 15 | 1/2" | 21.8 | 5.97 | 5.18 | 11.8 | 41 | 9 | 4.78 | 9.5 |
| 20 | 3/4" | 27.2 | 6.96 | 6.04 | 15.6 | 51 | 12 | 5.56 | 12.5 |
| 25 | 1" | 33.9 | 7.92 | 6.93 | 20.7 | 59 | 17 | 6.35 | 12.5 |
| 32 | 1-1/4" | 42.7 | 7.92 | 6.93 | 29.5 | 68 | 21 | 6.35 | 12.5 |
| 40 | 1-1/2" | 48.8 | 8.92 | 7.80 | 34.0 | 95 | 24 | 7.14 | 12.5 |
| 50 | 2" | 61.2 | 10.92 | 9.50 | 42.9 | 106 | 31 | 8.74 | 16.0 |
(2)Dimensions refer to ANSI B16.11
(3)Dimensions may vary according to the customer's and manufacturer's requirement.
