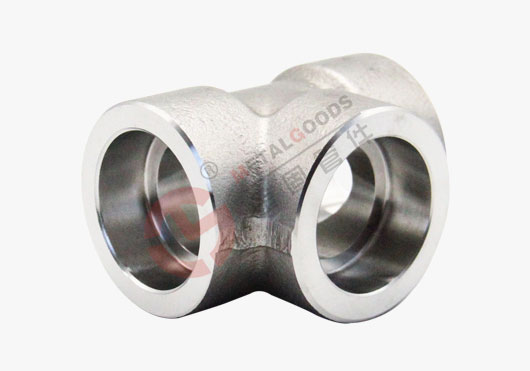

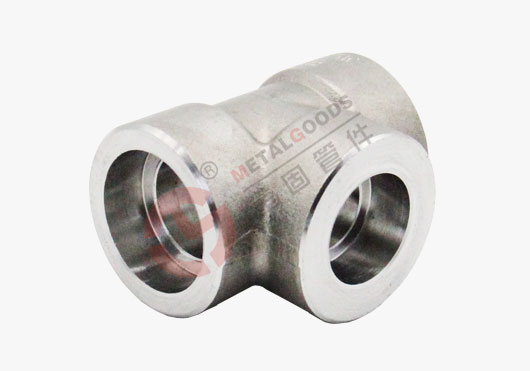

承插焊三通 | Socketweld Tee

Size/尺寸	1/8″~4″ (DN6~DN100)
Class/压力等级	3000 LBS, 6000 LBS, 9000 LBS
Type/连接形式	Sockeweld,承插焊
Surface Treatment/表面处理	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
Materal/材质	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process/制造工艺	Cutting, Heat treatment, Forging, Machining，锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准	ASME 16.11, GB/T14383-2018，BS-3799

Material Grades:

Stainless Steel/不锈钢	ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
Duplex & Super Duplex Steel/双相钢	ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢	ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢	ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金	Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金	ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Socket Weld Tee Specification:

Socket Weld Pressure Class	Pipe Schedule
Class 3000	S80/XH
Class 6000	S160
Class 9000	XXH

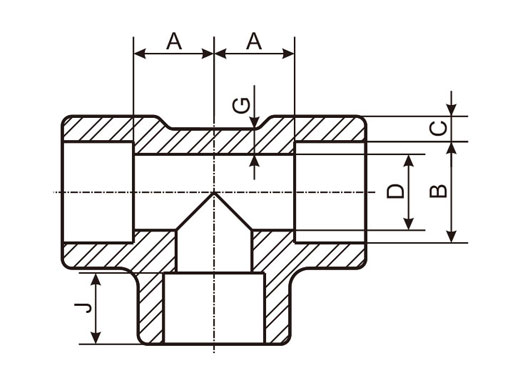

DN	Nom. Pipe Size	Center to Bottom of Socket-A						Socket Bore Dia. B	Bore Dia.Of Fitting D			Socket Wall Thickness（2） C						Body Wall Thickness G			Depth of Socket Min. J
		90°Elbows Tees,Crosses			45°Elbows				Bore Dia.Of Fitting D			Class Designation						Class Designation
		Class Designation			Class Designation				Class Designation			3000		6000		9000		3000	6000	9000
		3000	6000	9000	3000	6000	9000		3000	6000	9000	Ave.	Min.	Ave.	Min.	Ave.	Min.	Min.	Min.	Min.
6	1/8"	11.0	11.0	---	8.0	8.0	---	10.8	6.9	4.0	---	3.18	3.18	3.96	3.43	---	---	2.41	3.15	---	9.5
8	1/4"	11.0	13.5	---	8.0	8.0	---	14.2	9.3	6.4	---	3.78	3.30	4.60	4.01	---	---	3.02	3.68	---	9.5
10	3/8"	13.5	15.5	---	8.0	11.0	---	17.6	12.6	9.2	---	4.01	3.50	5.03	4.37	---	---	3.20	4.01	---	9.5
15	1/2"	15.5	19.0	25.5	11.0	12.5	15.5	21.8	15.8	11.8	6.4	4.67	4.09	5.97	5.18	9.35	8.18	3.73	4.78	7.47	9.5
20	3/4"	19.0	22.5	28.5	13.0	14.0	19.0	27.2	21.0	15.6	11.1	4.90	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82	12.5
25	1"	22.5	27.0	32.0	14.0	17.5	20.5	33.9	26.7	20.7	15.2	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09	12.5
32	1-1/4"	27.0	32.0	35.0	17.5	20.5	22.5	42.7	35.1	29.5	22.8	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.70	12.5
40	1-1/2"	32.0	38.0	38.0	20.5	25.5	25.5	48.8	40.9	34.0	28.0	6.35	5.54	8.92	7.80	12.70	11.12	5.08	7.14	10.15	12.5
50	2"	38.0	41.0	54.0	25.5	28.5	28.5	61.2	52.5	42.9	38.2	6.93	6.04	10.92	9.50	13.84	12.12	5.54	8.74	11.07	16.0
65	2-1/2"	41.0	---	---	28.5	---	---	73.9	62.7	---	---	8.76	7.67	---	---	---	---	7.01	---	---	16.0
80	3"	57.0	---	---	32.0	---	---	89.8	78.0	---	---	9.52	8.30	---	---	---	---	7.62	---	---	16.0
100	4"	66.5	---	---	41.0	---	---	115.2	102.3	---	---	10.69	9.35	---	---	---	---	8.56	---	---	16.0

(1) Dimensions in Millimeters.
(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
(3) Upper and lower values for each size are the respective maximum and minimum dimensions.
