堵头 | Plug

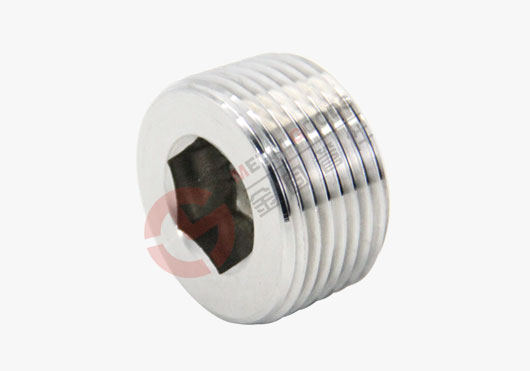

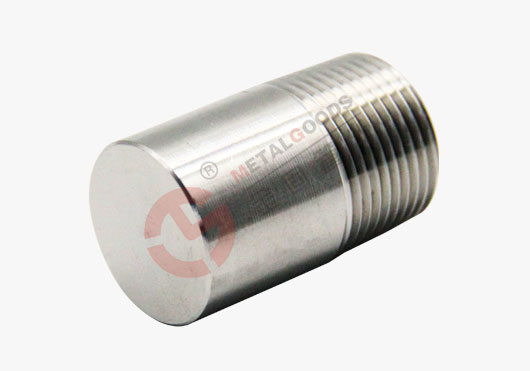

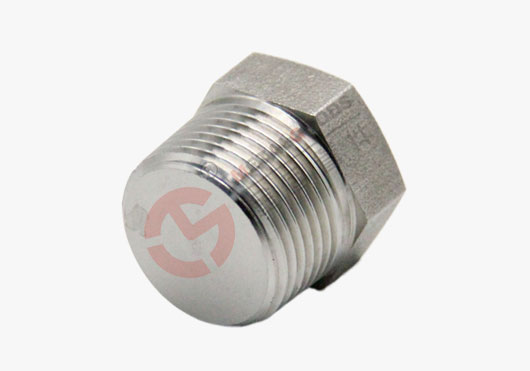

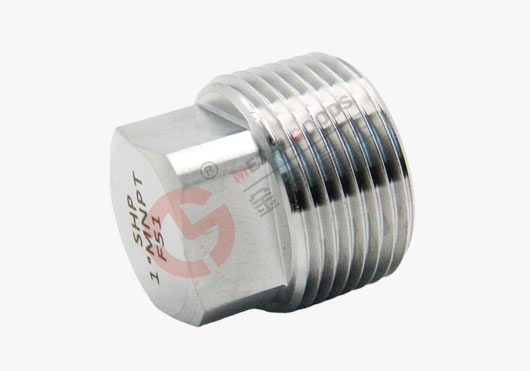

Threaded Plug Specification:
| Size/尺寸 | 1/8"~4" (DN6~DN100) |
| Class/压力等级 | 2000 LBS, 3000 LBS, 6000 LBS |
| Type/连接形式 | Threads: American National Standard Taper Pipe Threads, NPT(ANSI/ASME B1.20.1-1983), Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination. |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken, 热浸镀锌，环氧树脂和FBE涂层，电抛光，喷砂，发黑 |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel 不锈钢、合金钢、双相钢、低温钢、碳钢、镍基合金 |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining, 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | ASME 16.11, GB/T14383-2018 |
Threaded Plug Material Grades:
| Stainless Steel/不锈钢 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
Threaded Plug Dimesions:
 |  |

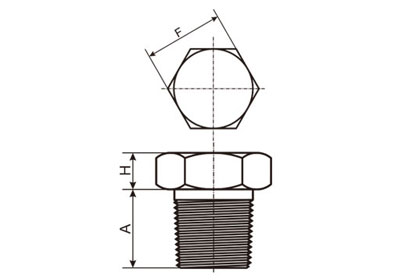

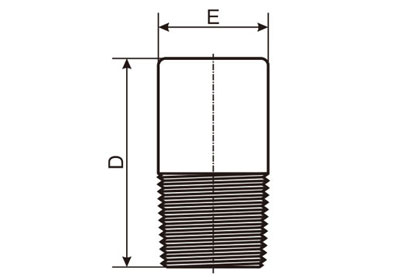

| 六角头堵头结构图 | 圆头堵头结构图 |
 |  |

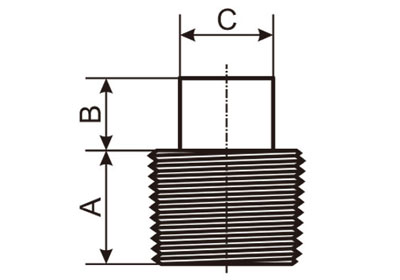

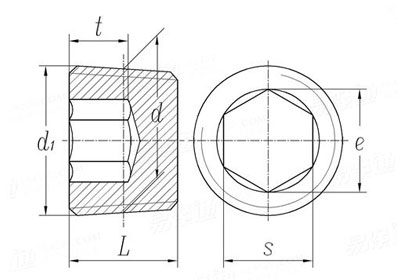

| 四方头堵头结构图 | 内六角堵头结构图 |
| DN | Nom. Pipe Size | Length (Min) A | Square Head Plug | Round Head Plug | Hex.Head Plug&Bushing | ||||
| Height of Square (Min.) B | Width Flat (Min.) C | Nominal Diameter of Head(Nom) D | Length (Min.) E | Width Flat (Nom.) F | Hex.Height(Min.） | ||||
| Bushing G | Plug H | ||||||||
| 6 | 1/8" | 10 | 6 | 7 | 10 | 35 | --- | --- | 6 |
| 8 | 1/4" | 11 | 6 | 10 | 14 | 41 | 16 | 3 | 6 |
| 10 | 3/8" | 13 | 8 | 11 | 18 | 41 | 18 | 4 | 8 |
| 15 | 1/2" | 14 | 10 | 14 | 21 | 44 | 22 | 5 | 8 |
| 20 | 3/4" | 16 | 11 | 16 | 27 | 44 | 27 | 6 | 10 |
| 25 | 1" | 19 | 13 | 21 | 33 | 51 | 36 | 6 | 10 |
| 32 | 1-1/4" | 21 | 14 | 24 | 43 | 51 | 46 | 7 | 14 |
| 40 | 1-1/2" | 21 | 16 | 28 | 48 | 51 | 50 | 8 | 16 |
| 50 | 2" | 22 | 18 | 32 | 60 | 64 | 65 | 9 | 18 |
| 65 | 2-1/2" | 27 | 19 | 36 | 73 | 70 | 75 | 10 | 19 |
| 80 | 3" | 28 | 21 | 41 | 89 | 70 | 90 | 10 | 21 |
| 100 | 4" | 32 | 25 | 65 | 114 | 76 | 115 | 13 | 25 |
(1) Dimensions in Millimeters.
(2) CAUTIONARY NOTE REGARDING HEX BUSHING.
Hex head bushing if one-size reduction should not be used in services where they might be
subject to harmful loads and forces other than internal pressure.
螺纹要求（这对您很重要）
1、以上均为锻钢高压实心堵头，额定压力可大410KG压力。
2、我们常规备货的螺纹有NPT（美制）60度锥管螺纹，PT（英制）55度锥管螺纹，其中RC/ZG/R，英制在国内非常常用，又称水管牙，美制非常少见，订货时请务必确认，两者不能通用。
3、我们工厂不接201、301等低质不锈钢材料的订单，最低为304材质起做。
4、如果您需要G螺纹，需定做，部分G外螺纹可以用PT（英制螺纹代替），外螺纹PT可以连接G内螺纹，反过来就不能用。
5、管件几何尺寸制造依据ASME B16.11及GB/T14383，螺纹制造标准为BSPT（ISO7/1），NPT（ASME B1.20.1）
